Head Unit
- ATMega2560 microcontroller running at 16MHz
- 256K Flash memory for coding
- 2.8″ Capacitive Touch LCD screen
- SD Card for storage of data and images
- Real time clock
- Battery backup for clock settings
- PH monitoring
- 3 temperature probe ports
- 3 input ports

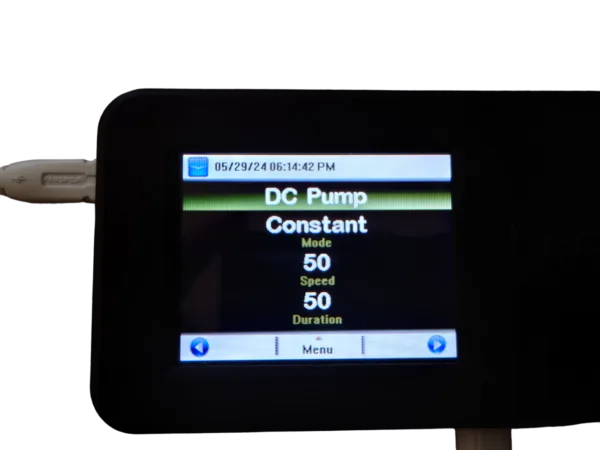

- 4 output ports (configurable to 0-5V PWM, 0-5V analog, 0-10V PWM or 0-10V analog)
- Rope leak detector port (rope leak sensor not included)
- 2x Expansion ports
- Ethernet port
- Cloud server compatible
- Remote firmware update
- Dimension: 7.0 x 3.0 x 1.0 in.

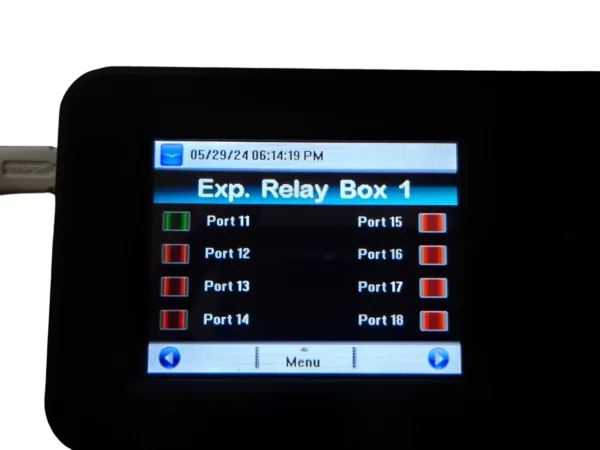

Relay Box
- 8 independently controlled outlets
- AC Input: 85-265VAC
- Max Load: 10A
- Max Load per outlet: 5A
- 3 prong universal type socket
- Dimension: 7.62 x 4.62 x 2.25 in.
Package Contents
- Head Unit
- Universal Relay Box Expansion
- SD Card
- 3x Temperature probes
- pH probe
- pH 7.0 and pH 10.0 calibration fluids
- 2x float switches
- Probe bracket
- Ethernet cable
- Power adapter
- USB cable
Limited Two-Year Warranty
Reef Angel products are warranted against defective materials or workmanship for two years from the date of original purchase. Proof of purchase is required. This warranty does not apply if, in the judgement of Reef Angel, the product fails due to damage from shipment, handling, storage, accident, abuse or misuse, or if it has been used or maintained in a manner not conforming to product’s instructions or has been modified in any way.
